Understanding Ac Gauges

Understanding AC gauges can transform the way you manage your air conditioning system. These tools are crucial for diagnosing issues and ensuring optimal performance. Have you ever wondered what those colorful dials mean? Let’s break it down together.

Types Of Ac Gauges

AC gauges come in various types, each serving specific purposes. The most common types are manifold gauges, vacuum gauges, and digital gauges.

• Manifold Gauges:These are the traditional AC gauges, often used by professionals. They have two gauges—one for low pressure and one for high pressure. They connect directly to the AC system, offering real-time readings.
• Vacuum Gauges:Essential for checking the vacuum within the system, these gauges help in identifying leaks. Ensuring a tight seal is crucial for efficiency.
• Digital Gauges:They offer precision and are user-friendly. With digital readings, you can track changes accurately. Many come with additional features like Bluetooth connectivity.

Choosing the right type can save you time and money. Have you tried using digital gauges for a more seamless experience?

Components Of Ac Gauges

Understanding the components of AC gauges can be the difference between a quick fix and a frustrating day. Let’s explore what makes up these essential tools.

• Hoses:These connect the gauges to the AC system. They are color-coded for ease—blue for low pressure, red for high pressure, and yellow for service.
• Connectors:Ensure a secure fit to the AC ports. They prevent leaks and ensure accurate readings.
• Valves:They control the flow of refrigerant. Proper handling can prevent accidental discharge.
• Gauges:The face of your AC gauge, where readings are displayed. Digital or analog, they provide the information you need.

Have you ever struggled with connecting hoses? Double-checking the color coding can simplify the process.

Understanding AC gauges isn’t just for professionals. With a bit of practice, you can master these tools and maintain your AC system with confidence. Do you feel ready to tackle your AC challenges head-on?

Credit: www.amazon.com

Preparing Your Vehicle

Before using AC gauges, it’s essential to prepare your vehicle properly. Proper preparation ensures accurate readings and safe operation. It also helps prevent damage to your vehicle’s AC system. Understanding each step is crucial for effective gauge use.

Safety Precautions

Ensure your vehicle is parked on a flat surface. Turn off the engine and let it cool. This prevents burns from hot components. Wear safety goggles and gloves. They protect you from refrigerant exposure. Keep a fire extinguisher nearby. It’s a safety measure in case of emergencies.

Locating The Ac Service Ports

Identify the high and low-pressure service ports. Consult your vehicle’s manual for their locations. The low-pressure port is usually on the larger tube. The high-pressure port is on the smaller tube. These ports are crucial for connecting your AC gauges. Ensure you select the correct port for each connection. This step is essential for accurate readings.

Setting Up The Ac Gauges

Setting up AC gauges involves connecting the hoses to the correct ports. Ensure the valves are tightly closed. Read the pressure levels displayed to assess the system’s condition.

Setting up AC gauges might seem like a daunting task at first, but with the right guidance, it can be straightforward and manageable. Whether you are a DIY enthusiast or a professional technician, understanding how to correctly set up these gauges is crucial for an accurate diagnosis of your AC system. The process involves attaching the gauges properly and ensuring they are connected correctly. Let’s dive into each step to ensure your setup is precise and effective.

Attaching Gauges Properly

Begin by identifying the high and low-pressure ports on your AC system. These are typically marked and easy to spot. Carefully attach the high-pressure gauge to the high-pressure port. Ensure the connection is tight and secure to prevent leaks. Repeat the process for the low-pressure gauge. A secure connection here is equally important for accurate readings. Remember that practice makes perfect. If you’re unsure, try attaching the gauges a few times to get comfortable with the process.

Ensuring Correct Connections

Verify that each gauge is attached to the correct port. A mix-up could lead to inaccurate readings and possible damage. Inspect the hoses for any signs of wear or damage. Even a small crack could lead to pressure loss and incorrect diagnostics. Consider using a bit of lubricant to help secure the connections without over-tightening. This can make the process smoother. Think about how these connections impact the accuracy of your readings. Are you confident that each is secure and in the right place? Setting up AC gauges might not be rocket science, but it requires attention and care. Have you considered the impact of a loose connection on your diagnostic results? Taking the time to ensure everything is properly attached can save you a lot of trouble down the road.

Interpreting Gauge Readings

Interpreting gauge readings can seem daunting at first, but it’s a skill that can be mastered with a bit of patience and practice. Understanding what those numbers mean is crucial for effective air conditioning maintenance. Imagine you’re on a hot summer day, and your AC suddenly stops working. Knowing how to read the gauges can be your first step in diagnosing the problem and restoring comfort to your space.

Understanding Pressure Levels

Pressure levels on AC gauges indicate the performance of your air conditioning system. The two main types are the low-pressure gauge and the high-pressure gauge. The low side typically shows readings between 25-35 psi, while the high side can range from 150-250 psi.

Why are these numbers important? They help you understand the flow and compression in your AC system. If your low side is too high, it might suggest a problem with the compressor. Conversely, a low reading on the high side could indicate a refrigerant leak.

Have you ever checked the pressure and found it off the charts? This could be a sign of contamination or blockage in the system. Regular monitoring can prevent surprise breakdowns.

Diagnosing Common Issues

Gauge readings can help diagnose common AC issues. A low pressure reading might signal a refrigerant leak. This is a frequent problem that can lead to inefficient cooling and increased energy bills.

High pressure readings could mean a problem with the condenser. If you notice this, check if the condenser coils are dirty or obstructed. Cleaning them might be all you need to do.

Ever faced fluctuating readings? This could be due to a faulty expansion valve. Replacing it might stabilize the system and improve performance. Understanding these readings empowers you to address issues head-on.

Next time your AC acts up, pause and check the gauges. What do the readings tell you? Your insights could lead to a quick fix, saving you time and money. What other methods do you use to diagnose your AC system’s health?

Troubleshooting With Ac Gauges

Troubleshooting your air conditioning system can feel like deciphering a mystery. But with AC gauges, you have a powerful tool to help solve the puzzle. Understanding how to use them can save you time and money. Refrigerant leaks are a common issue that can cripple your AC’s efficiency. With AC gauges, you can pinpoint these leaks without guesswork. Start by attaching the gauges to the service ports of your AC system. Monitor the pressure readings closely. If the pressure is lower than normal, this often indicates a leak. A friend once discovered a tiny leak in his car’s AC after noticing a gradual drop in pressure over a week. The gauge readings led him directly to the problem, saving him a costly repair. The compressor is the heart of your AC system. If it fails, the whole system can break down. Use AC gauges to assess its function by checking the pressure levels on the high and low sides of the system. Are the readings balanced? If they aren’t, your compressor might be struggling. Once, I found my home AC was blowing warm air during a heatwave. Using gauges, I saw the high side pressure was unusually low. This pointed to a failing compressor, which I replaced just in time. Engaging with your AC gauges can transform your understanding of your system. What mysteries will you uncover in your troubleshooting journey?

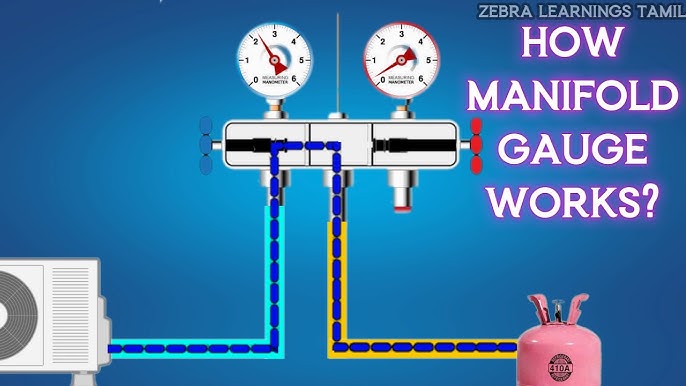

Credit: www.youtube.com
